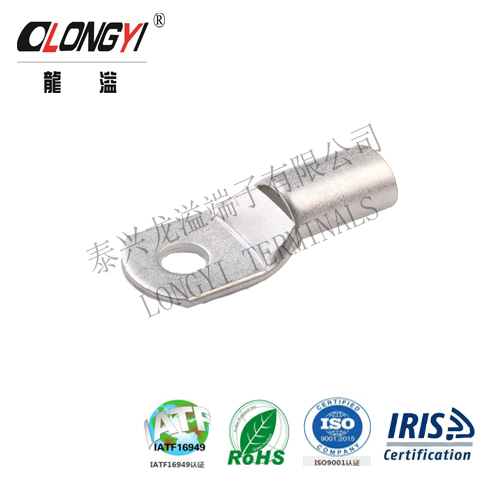

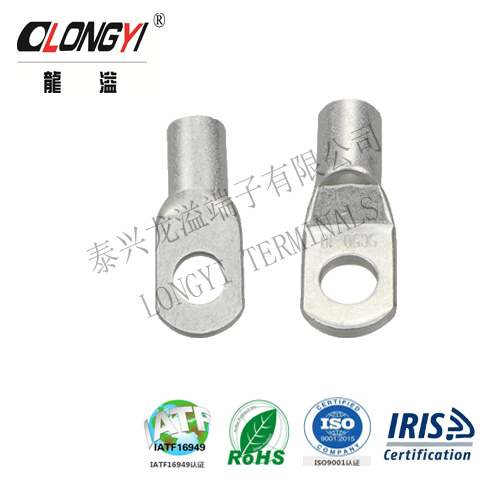

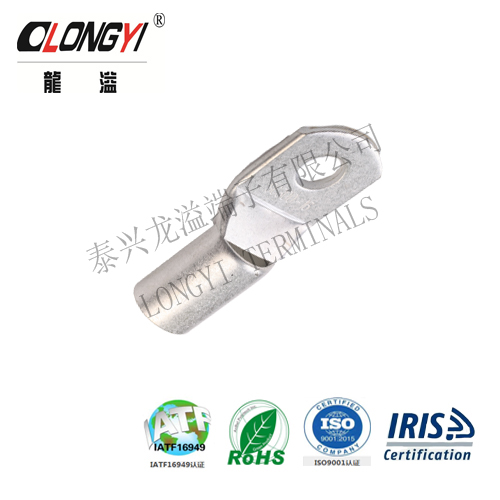

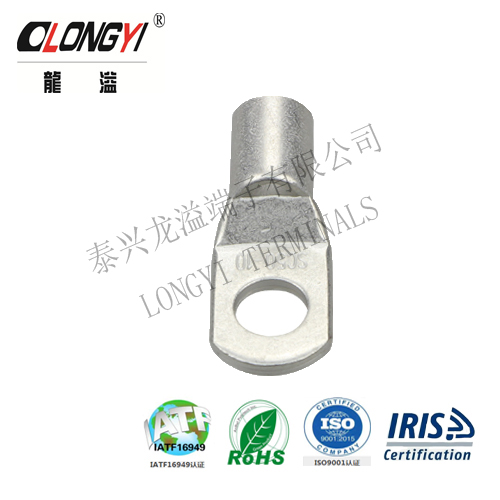

冷压端子--SC铜管端子

LY0002-0001/0097

⊙材质:紫铜
⊙含量:铜99.9%以上
⊙表面:镀锡
⊙用途:端子就是用于实现电气连接的一种配件产品,工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的,它其实就是一段封在绝缘塑料里面的金属片,两端都有孔可以插入导线,有螺丝用于紧固或者松开。比如两根导线,有时需要连接,有时又需要断开,这时就可以用端子把它们连接起来,并且可以随时断开,而不必把它们焊接起来或者缠绕在一起,很方便快捷。

冷压端子
PART NO
2015-2018
ITEM NO DIMENSIONS
φE ΦD Φd W B L
LY0002-0001 SC1.5-4 4.2 3.7 1.8 8.0 5.0 16.0
LY0002-0002 SC1.5-5 5.2 3.7 1.8 10.0 5.0 17.0
LY0002-0003 SC1.5-6 6.5 3.7 1.8 10.0 5.0 18.0
LY0002-0004 SC2.5-4 4.2 4.0 2.4 8.0 7.0 18.0
LY0002-0005 SC2.5-5 5.2 4.0 2.4 10.0 7.0 20.0
LY0002-0006 SC2.5-6 6.5 4.0 2.4 10.0 7.0 20.0
LY0002-0007 SC2.5-8 8.4 4.0 2.4 12.5 7.0 23.0
LY0002-0008 SC4-4 4.2 4.8 3.1 10.0 7.0 20.0
LY0002-0009 SC4-5 5.2 4.8 3.1 10.0 7.0 20.0
LY0002-0010 SC4-6 6.5 4.8 3.1 10.0 7.0 20.0
LY0002-0011 SC4-8 8.4 4.8 3.1 12.5 7.0 23.0
LY0002-0012 SC6-4 4.2 5.5 3.8 10.0 9.0 24.0
LY0002-0013 SC6-5 5.2 5.5 3.8 10.0 9.0 24.0
LY0002-0014 SC6-6 6.5 5.5 3.8 12.0 9.0 24.0
LY0002-0015 SC6-8 8.4 5.5 3.8 12.5 9.0 26.0
LY0002-0016 SC6-10 10.5 6.2 4.0 15.0 9.0 28.0
LY0002-0017 SC10-5 5.2 6.2 4.5 12.0 9.0 25.0
LY0002-0018 SC10-6 6.5 6.2 4.5 12.0 9.0 25.0
LY0002-0019 SC10-8 8.4 6.2 4.5 12.5 9.0 27.0
LY0002-0020 SC10-10 10.5 6.2 4.5 15.0 9.0 29.0
LY0002-0021 SC10-12 13.0 6.2 4.5 17.0 9.0 31.0
LY0002-0022 SC16-5 5.2 7.1 5.4 12.0 12.0 30.0
LY0002-0023 SC16-6 6.5 7.1 5.4 12.0 12.0 30.0
LY0002-0024 SC16-8 8.4 7.1 5.4 12.5 12.0 30.0
LY0002-0025 SC16-10 10.5 7.1 5.4 16.0 12.0 33.0
LY0002-0026 SC16-12 13.0 7.1 5.4 17.0 12.0 35.0
LY0002-0027 SC25-5 5.2 8.8 6.8 13.0 12.0 33.0
LY0002-0028 SC25-6 6.5 8.8 6.8 13.0 12.0 33.0
LY0002-0029 SC25-8 8.4 8.8 6.8 15.0 12.0 33.0
LY0002-0030 SC25-10 10.5 8.8 6.8 18.0 12.0 34.0
LY0002-0031 SC25-12 13.0 8.8 6.8 18.0 12.0 35.0
LY0002-0032 SC25-14 15.0 8.8 6.8 20.0 12.0 38.0
LY0002-0033 SC35-5 5.2 10.6 8.2 16.0 14.0 38.0
LY0002-0034 SC35-6 6.5 10.6 8.2 16.0 14.0 38.0
LY0002-0035 SC35-8 8.4 10.6 8.2 16.0 14.0 38.0
LY0002-0036 SC35-10 10.5 10.6 8.2 18.0 14.0 39.0
LY0002-0037 SC35-12 13.0 10.6 8.2 19.0 14.0 40.5
LY0002-0038 SC35-14 15.0 10.6 8.2 20.0 14.0 42.0
LY0002-0039 SC50-6 6.5 12.4 9.5 17.8 16.0 45.0
LY0002-0040 SC50-8 8.4 12.4 9.5 17.8 16.0 45.0
LY0002-0041 SC50-10 10.5 12.4 9.5 17.8 16.0 45.0
LY0002-0042 SC50-12 13.0 12.4 9.5 20.0 16.0 45.0
LY0002-0043 SC50-14 15.0 12.4 9.5 22.0 16.0 46.0
LY0002-0044 SC50-16 17.0 12.4 9.5 24.0 16.0 47.0
LY0002-0045 SC70-8 8.4 14.7 11.2 21.0 20.0 52.0
LY0002-0046 SC70-10 10.5 14.7 11.2 21.0 20.0 52.0
LY0002-0047 SC70-12 13.0 14.7 11.2 21.0 20.0 52.0
LY0002-0048 SC70-14 15.0 14.7 11.2 21.0 20.0 52.0
LY0002-0049 SC70-16 17.0 14.7 11.2 25.0 20.0 53.0
LY0002-0050 SC95-8 8.4 17.4 13.5 25.0 23.0 58.0
LY0002-0051 SC95-10 10.5 17.4 13.5 25.0 23.0 58.0
LY0002-0052 SC95-12 13.0 17.4 13.5 25.0 23.0 58.0
LY0002-0053 SC95-14 15.0 17.4 13.5 25.0 23.0 58.0
LY0002-0054 SC95-16 17.0 17.4 13.5 25.0 23.0 58.0
LY0002-0055 SC120-8 8.4 19.4 15.0 28.0 22.0 63.0
LY0002-0056 SC120-10 10.5 19.4 15.0 28.0 22.0 63.0
LY0002-0057 SC120-12 13.0 19.4 15.0 28.0 22.0 63.0
LY0002-0058 SC120-14 15.0 19.4 15.0 28.0 22.0 63.0
LY0002-0059 SC120-16 17.0 19.4 15.0 28.0 22.0 63.0
LY0002-0060 SC120-20 21.0 19.4 15.0 28.0 22.0 63.0
LY0002-0061 SC150-8 8.4 21.2 16.5 30.5 26.0 70.0
LY0002-0062 SC150-10 10.5 21.2 16.5 30.5 26.0 70.0
LY0002-0063 SC150-12 13.0 21.2 16.5 30.5 26.0 70.0
LY0002-0064 SC150-14 15.0 21.2 16.5 30.5 26.0 70.0
LY0002-0065 SC150-16 17.0 21.2 16.5 30.5 26.0 70.0
LY0002-0066 SC150-20 21.0 21.2 16.5 30.5 26.0 70.0
LY0002-0067 SC185-10 10.5 23.5 18.5 34.0 32.0 75.0
LY0002-0068 SC185-12 13.0 23.5 18.5 34.0 32.0 75.0
LY0002-0069 SC185-14 15.0 23.5 18.5 34.0 32.0 75.0
LY0002-0070 SC185-16 17.0 23.5 18.5 34.0 32.0 75.0
LY0002-0071 SC185-20 21.0 23.5 18.5 34.0 32.0 75.0
LY0002-0072 SC240-10 10.5 26.5 21.0 38.5 38.0 90.0
LY0002-0073 SC240-12 13.0 26.5 21.0 38.5 38.0 90.0
LY0002-0074 SC240-14 15.0 26.5 21.0 38.5 38.0 90.0
LY0002-0075 SC240-16 17.0 26.5 21.0 38.5 38.0 90.0
LY0002-0076 SC240-18 19.0 26.5 21.0 38.5 38.0 90.0
LY0002-0077 SC240-20 21.0 26.5 21.0 38.5 38.0 90.0
LY0002-0078 SC300-10 10.5 30.0 23.5 43.0 42.0 98.0
LY0002-0079 SC300-12 13.0 30.0 23.5 43.0 42.0 98.0
LY0002-0080 SC300-14 15.0 30.0 23.5 43.0 42.0 98.0
LY0002-0081 SC300-16 17.0 30.0 23.5 43.0 42.0 98.0
LY0002-0082 SC300-20 21.0 30.0 23.5 43.0 42.0 98.0
LY0002-0083 SC400-10 10.5 36.5 28.5 52.0 44.0 110.0
LY0002-0084 SC400-12 13.0 36.5 28.5 52.0 44.0 110.0
LY0002-0085 SC400-14 15.0 36.5 28.5 52.0 44.0 110.0
LY0002-0086 SC400-16 17.0 36.5 28.5 52.0 44.0 110.0
LY0002-0087 SC400-20 21.0 36.5 28.5 52.0 44.0 110.0
LY0002-0088 SC500-10 10.5 39.0 30.0 56.0 48.0 120.0
LY0002-0089 SC500-12 13.0 39.0 30.0 56.0 48.0 120.0
LY0002-0090 SC500-14 15.0 39.0 30.0 56.0 48.0 120.0
LY0002-0091 SC500-16 17.0 39.0 30.0 56.0 48.0 120.0
LY0002-0092 SC500-20 21.0 39.0 30.0 56.0 48.0 120.0
LY0002-0093 SC630-10 10.5 45.0 35.0 65.0 56.0 140.0
LY0002-0094 SC630-12 13.0 45.0 35.0 65.0 56.0 140.0
LY0002-0095 SC630-14 15.0 45.0 35.0 65.0 56.0 140.0
LY0002-0096 SC630-16 17.0 45.0 35.0 65.0 56.0 140.0
LY0002-0097 SC630-20 21.0 45.0 35.0 65.0 56.0 140.0
