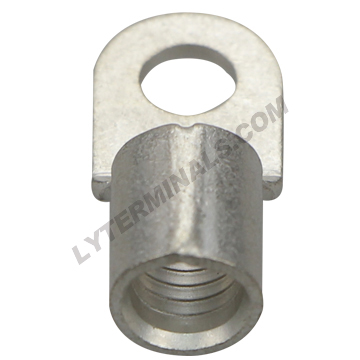

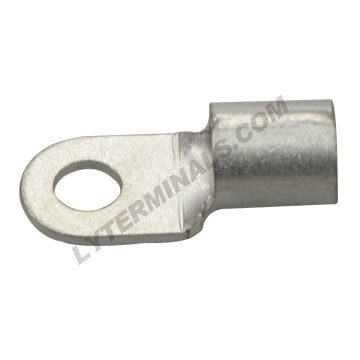

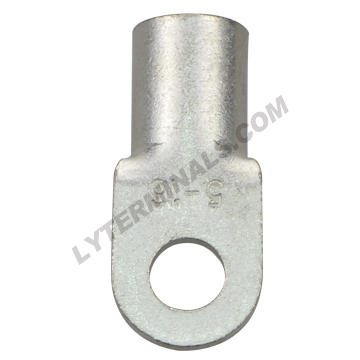

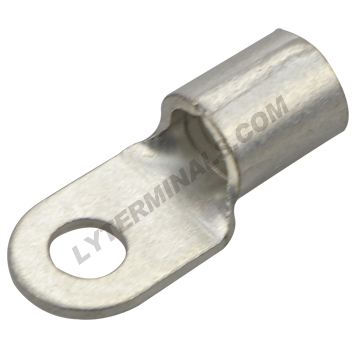

线鼻子--DIN46234铜皮端子

LY0020-1001/1070

⊙材质:紫铜
⊙含量:铜99.9%以上
⊙表面:镀锡


⊙用途:端子就是用于实现电气连接的一种配件产品,工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的,它其实就是一段封在绝缘塑料里面的金属片,两端都有孔可以插入导线,有螺丝用于紧固或者松开。比如两根导线,有时需要连接,有时又需要断开,这时就可以用端子把它们连接起来,并且可以随时断开,而不必把它们焊接起来或者缠绕在一起,很方便快捷。

线鼻子 PART NO
2015-2018
ITEM NO WIRE RANGE 尺寸
AWG/MCM MM2 E d W B L1 T L
LY0020-1001 2-0.5 26-22 0.2-0.5 2.2 1.0 5.0 4.0 10.00 0.5 12.5
LY0020-1002 2.5-0.5 2.7 5.0 10.00 12.5
LY0020-1003 3-0.5 3.2 5.0 10.00 12.5
LY0020-1004 3.5-0.5 3.7 6.0 12.00 15.0
LY0020-1005 4-0.5 4.3 6.5 12.00 15.3
LY0020-1006 5-0.5 5.3 8.0 12.00 16.0
LY0020-1007 2.5-1 22-16 0.5-1.5 2.7 1.6 6.0 5.0 11.00 0.8 14.0
LY0020-1008 3-1 3.2 6.0 11.00 14.0
LY0020-1009 3.5-1 3.7 6.0 11.00 14.0
LY0020-1010 4-1 4.3 8.0 12.00 16.0
LY0020-1011 5-1 5.3 10.0 13.00 18.0
LY0020-1012 3-2.5 16-14 1.5-2.5 3.2 2.3 6.0 5.0 11.00 0.8 14.0
LY0020-1013 3.5-2.5 3.7 6.0 11.00 14.0
LY0020-1014 4-2.5 4.3 8.0 12.00 16.0
LY0020-1015 5-2.5 5.3 10.0 14.00 19.0
LY0020-1016 6-2.5 6.5 11.0 16.00 21.5
LY0020-1017 8-2.5 8.4 14.0 17.00 24.0
LY0020-1018 4-6 12-10 4-6 4.3 3.6 8.0 6.0 14.00 1.0 18.0
LY0020-1019 5-6 5.3 10.0 15.00 20.0
LY0020-1020 6-6 6.5 11.0 16.00 21.5
LY0020-1021 8-6 8.4 14.0 19.00 26.0
LY0020-1022 10-6 10.5 18.0 21.00 30.0
LY0020-1023 5-10 8 10 5.3 4.5 10.0 8.0 16.00 1.1 21.0
LY0020-1024 6-10 6.5 11.0 17.00 22.5
LY0020-1025 8-10 8.4 14.0 20.00 27.0
LY0020-1026 10-10 10.5 18.0 21.00 30.0
LY0020-1027 12-10 13.0 22.0 23.00 34.0
LY0020-1028 5-16 6 16 5.3 5.8 11.0 10.0 20.00 1.2 25.5
LY0020-1029 6-16 6.5 11.0 20.00 25.5
LY0020-1030 8-16 8.4 14.0 22.00 29.0
LY0020-1031 10-16 10.5 18.0 24.00 33.0
LY0020-1032 12-16 13.0 22.0 26.00 37.0
LY0020-1033 5-25 4 25 5.3 7.5 12.0 11.0 25.00 1.5 31.0
LY0020-1034 6-25 6.5 12.0 25.00 31.0
LY0020-1035 8-25 8.4 16.0 25.00 33.0
LY0020-1036 10-25 10.5 18.0 26.00 35.0
LY0020-1037 12-25 13.0 22.0 31.00 42.0
LY0020-1038 16-25 17.0 28.0 35.00 49.0
LY0020-1039 6-35 2 35 6.5 9.0 15.0 12.0 26.00 1.6 33.5
LY0020-1040 8-35 8.4 16.0 26.00 34.0
LY0020-1041 10-35 10.5 18.0 27.00 36.0
LY0020-1042 12-35 13.0 22.0 31.00 42.0
LY0020-1043 16-35 17.0 28.0 36.00 50.0
LY0020-1044 6-50 1/0 50 6.5 11.0 18.0 16.0 34.00 1.8 43.0
LY0020-1045 8-50 8.4 18.0 34.00 43.0
LY0020-1046 10-50 10.5 18.0 34.00 43.0
LY0020-1047 12-50 13.0 22.0 36.00 47.0
LY0020-1048 16-50 17.0 28.0 40.00 54.0
LY0020-1049 6-70 2/0 70 6.5 13.0 22.0 18.0 38.00 2.0 49.0
LY0020-1050 8-70 8.4 22.0 38.00 49.0
LY0020-1051 10-70 10.5 22.0 38.00 49.0
LY0020-1052 12-70 13.0 22.0 38.00 49.0
LY0020-1053 16-70 17.0 28.0 42.00 56.0
LY0020-1054 8-95 3/0 95 8.4 15.0 24.0 20.0 42.00 2.5 54.0
LY0020-1055 10-95 10.5 24.0 42.00 54.0
LY0020-1056 12-95 13.0 24.0 42.00 54.0
LY0020-1057 16-95 17.0 28.0 44.00 58.0
LY0020-1058 8-120 4/00 120 8.4 16.5 24.0 22.0 44.00 3.0 56.0
LY0020-1059 10-120 10.5 24.0 44.00 56.0
LY0020-1060 12-120 13.0 24.0 44.00 56.0
LY0020-1061 16-120 17.0 28.0 48.00 62.0
LY0020-1062 10-150 250/300 150 10.5 19.0 30.0 24.0 50.00 3.2 65.0
LY0020-1063 12-150 13.0 30.0 50.00 65.0
LY0020-1064 16-150 17.0 30.0 50.00 65.0
LY0020-1065 10-185 300/350 185 10.5 21.0 36.0 28.0 50.00 3.5 68.0
LY0020-1066 12-185 13.0 36.0 50.00 68.0
LY0020-1067 16-185 17.0 36.0 50.00 68.0
LY0020-1068 10-240 400/450 240 10.5 23.5 38.0 32.0 56.00 4.0 75.0
LY0020-1069 12-240 13.0 38.0 56.00 75.0
LY0020-1070 16-240 17.0 38.0 56.00 75.0

利用现有轨道式接线端子 RTB 连接技术,并加装了电子元器件组成的电路,实现了光电过程的传输耦合。 自动控制的核心是控制单元必须与各传感器和执行器可靠地隔离开,以免干扰,端子能够很好地完成这一功能,并保证现场信号与电子控制装置所要求的低电压相匹配,还可以作过程控制的外围设备与控制,信号和调节器装置之间的接口元件,且适用于不同的电压和功率范围。  光隔端子具有控制端信号损耗下、切换频率高、无机械触点抖动、无磨损切换、绝缘电压高、不怕振动、不受位置影响且寿命长等优点,因此在自动控制领域得到广泛应用。
